Product
Premium class, guaranteed
Advantage
- Standard clearance = 3.0 m, adjustable higher or lower, accordingly modifying overall height measurement.
- Ergonomics and quality to the work environment
- Compact design, perfectly suited for small rooms
- Large effective lifting height
- Cost-effective crane
- Easy slewing
- Under braced design, low dead weight of jib arm
- Outdoor use possible
- High-quality painting/coating
- Functionally designed for efficient working
- Secure and comfortable handling of the load
- Covers 360 degree area
- Smooth running trolleys minimize the rolling resistance and ensure light movements
Technical Information

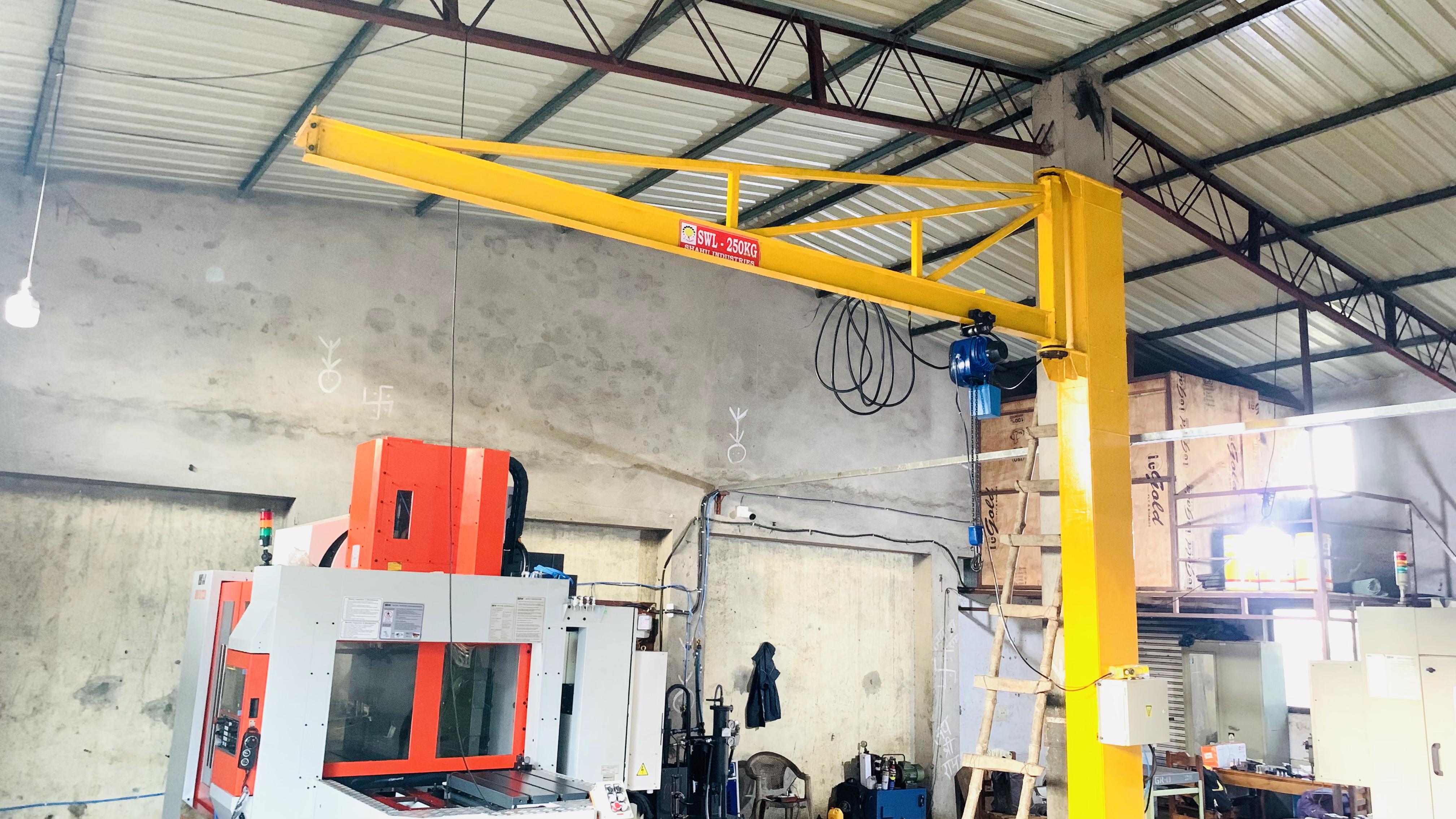

- Column-mounted slewing JIB Crane
- Capacity: 80 to 5,000 kg
- Outreach: 2 mtr to 10 mtr
- Degree of rotation max.: 180 °, 270 ° , 360°
- IS standard referred : IS:15419
- Jib design: Under braced & over braced
- Jib arm profile- KBK rail / I-Beam section
- Installation location: Indoor / outdoor
- Slewing: Manual/motorized
- Used with electric or manual chain hoist, various balancers, lifting devices
Description
The slewing JIB Crane is our cost-effective basic crane!
Due to its compact design, the crane features a maximum lifting height and is perfectly suitable for small and narrow operating rooms.

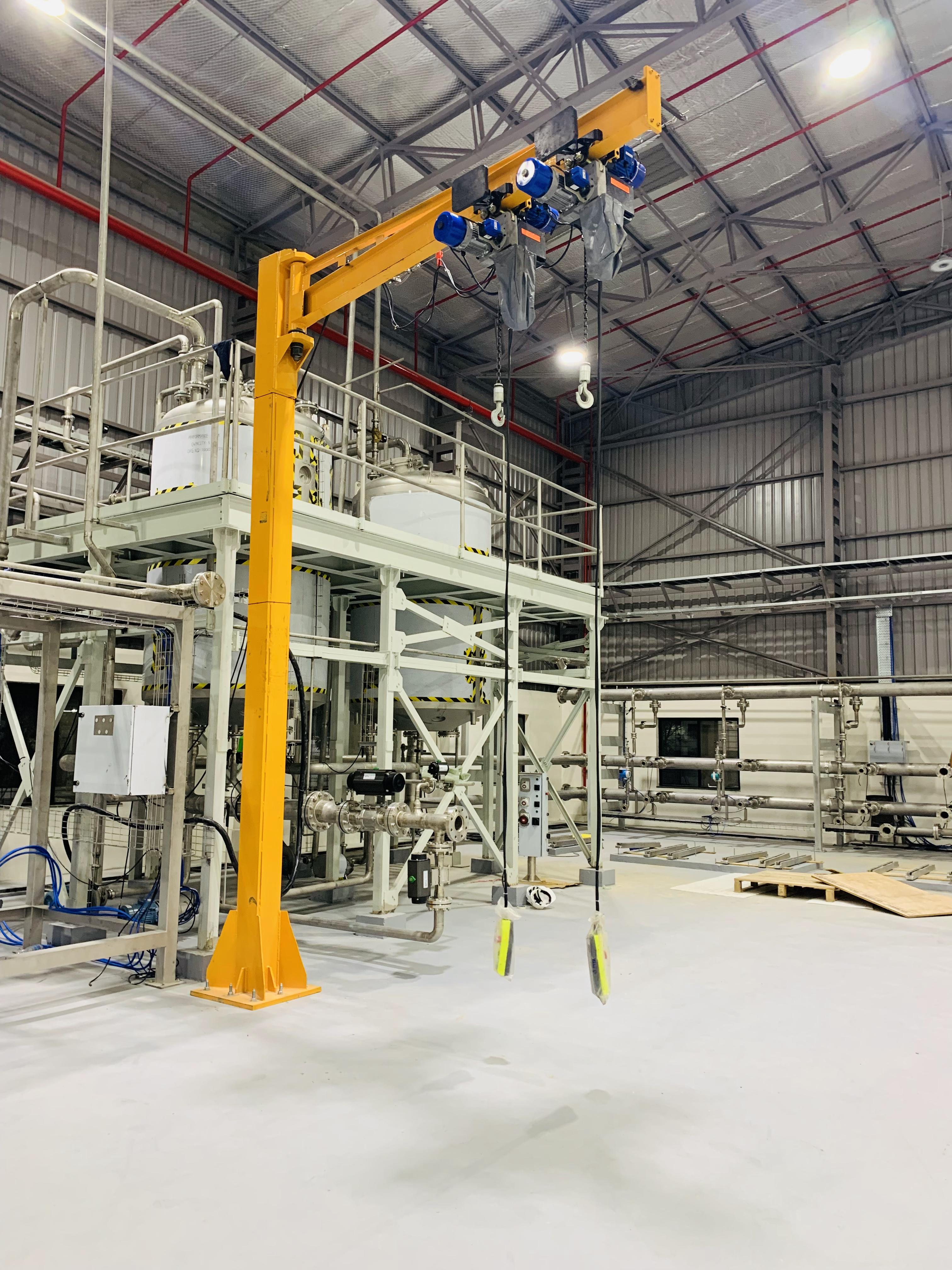

Free standing JIB Crane is a perfect solution for a work station where is no support for wall mounting. You can use it for simple operational tasks requiring a capacity of up to 3,000 kg. Its under braced or over braced design and lightweight jib arm(KBK rail or I beam) enable especially easy slewing of the crane. This type of crane perfectly meets your requirements for indoor and outdoor use since column height and jib arm length can be adjusted individually. Free standing crane perfectly meets your requirements for indoor and outdoor use since column height and jib arm length can be adjusted individually. Slewing motion reaches up to 360 degrees. High quality bushes/ bearings ensure ergonomics and lightness of use.
Moreover, we offer a electric chain hoists with electric trolley as well as various other accessories.
Accessories
- Installation template + anchor rods
- Electric or manual hoist
- Hoist power supply cable
- Adjustable rotation stopper
- Lockable main switch
- Fasteners
