Product
We believe in quality products
Advantage
- Optimized friction rollers
- Corrosion-free structure
- Designed for moving the trolley by pushing/ pulling the lifted load along the I-Beam axis
- Most easy to slide model
- Robust construction- easy to assemble and dismantle
- Interchangeable Spares.
- Evenly distributed load on four wheels for durability and least friction
- Safe to use and easy maintenance .
- Compact structure and small size .
- It is easy to adjust the distance between wheels , making it suitable for different size H or I beam .
- Superb strength
- Under the action of gravity , the four wheels of push trolley can automatically adjust the height at the same level , and wheels are under uniform force .
- Excellent finishing
- Push trolley has high transmission efficiency and lower hand force . It can be also travel on the beam with rated curve radius .
Technical Information
- Available up to 3ton capacity.
- Trolley wheels are machined for accuracy in its taper on CNC machine and running on roller bearings to minimize the frictional load–giving minimum effort for the operation
- Adjustable in width to suit to the I-Beam
- Trolley wheels are machined for accuracy on roller bearings to minimize the frictional load – giving minimum effort for the operation
- Trolleys can be installed on either I-beam or H-beam rails
- All four wheels feature high-grade closed ball bearings that do not require lubrication.
- Different kinds of flange widths, 75-180 mm &180 -250
- Heat-treated steel wheels are hardened for long life
- Maintenance-friendly sealed ball bearings
- Hand geared trolley capacity : 0.5ton , 1ton , 2ton , 3ton
- Standard hand chain height is 3meters , much longer height is customized .
Description

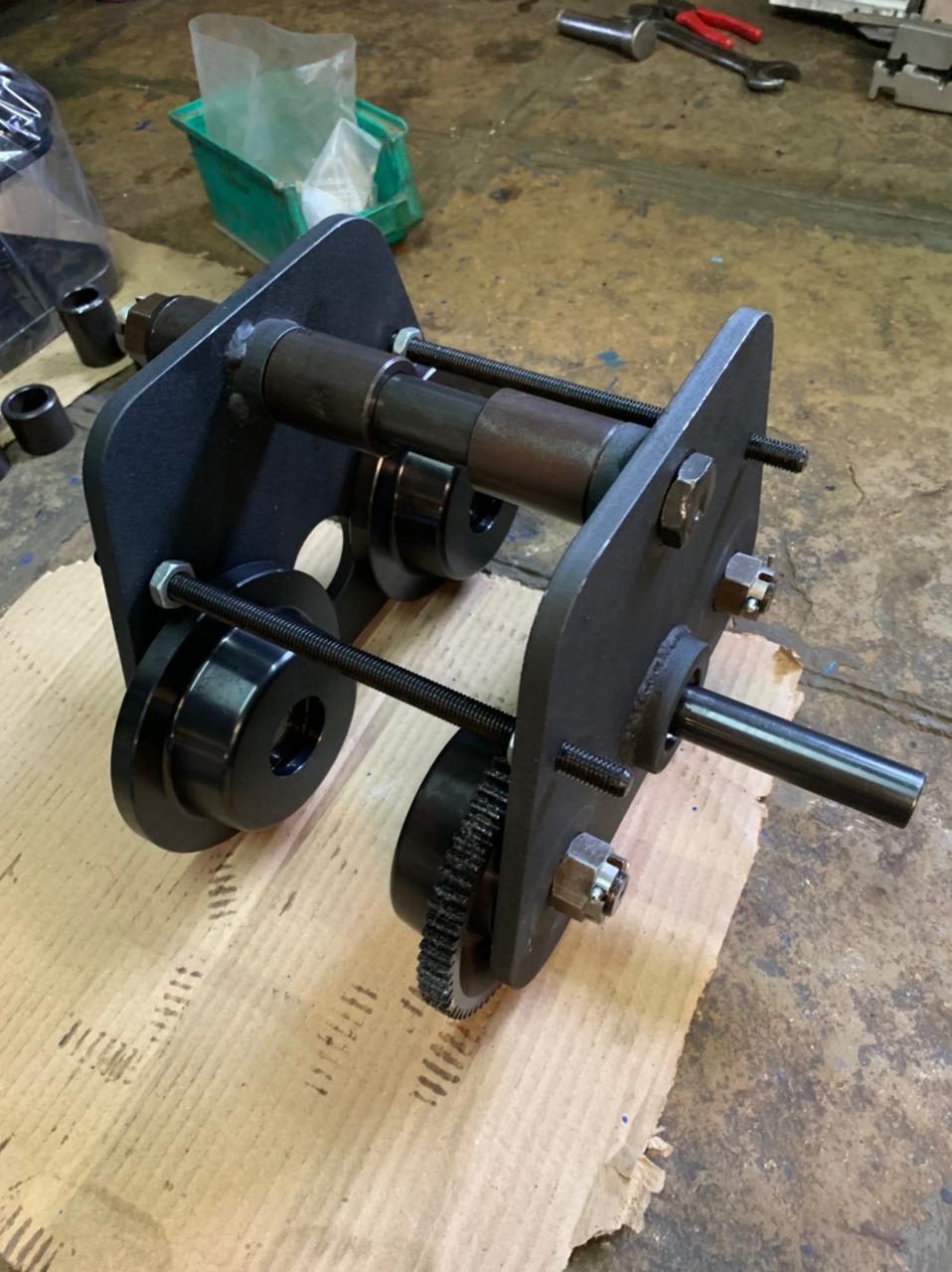

This beam trolley can be supplied in a range of models to suit a variety of beam widths, there are 2 ranges, the standard range and the extended beam range for larger 'I' beams.
Plain trolley / geared trolley , also called monorail beam trolley , lifting trolley, chain hoist trolley . With different driven method , plain trolley can be divided into hand push trolley and geared trolley . Geared trolley is driven by pulling the hand chain, and push trolley work by hand pushing the lifting load , then walk freely on the I beam or H beam flange.
The wheel rim spacing can be adjusted according to the requirements of i-steel rail width . Both plain trolley and geared trolley have a support connecting ring or a hole to hang the chain hoist below, can be composed of manual lifting transportation device.
Motorized Trolley
Durable. Reliable. Powerful. Introducing the Motorized Trolley. These trolleys are designed to be cross compatible with hoists built by most major manufacturers. With larger trolley wheels than similar models, these Trolleys can withstand severe use at or near rated capacities. Easily adjustable to ride on a range of beam widths, and powered by motors, the Beam trolley can move hoists and materials throughout a facility with the simple push of a button.
Available in both, hand chain wheel driven trolley, and motorized trolley, as per the needs of the customers.
Accessories
Rubber buffer :- Buffers are required to prevent damage to equipment and structural work resulting from travel units with each other or with end of track. It is also very important to avoid unsafe working conditions and ensure safety of workers.
Wheels:- Graded casted/ EN8/EN9/ wheels are mounted in ball bearings. Geared wheels are accurately hobbing cut.
Hand chains:- electrically butt welded. Accurately calibrated to easily fit into sprockets of hand chain wheel.
