Technical Information

• Capacity: 30 to 2000 KG
• Outreach: 2,000 to 6,000 mm
• Wall mounted standard bracket
• KBK rail profile / I BEAM JIB
• Degree of rotation max.: 180°
• Bearing design makes rotational motion smoother
• IS standard referred : IS:15419

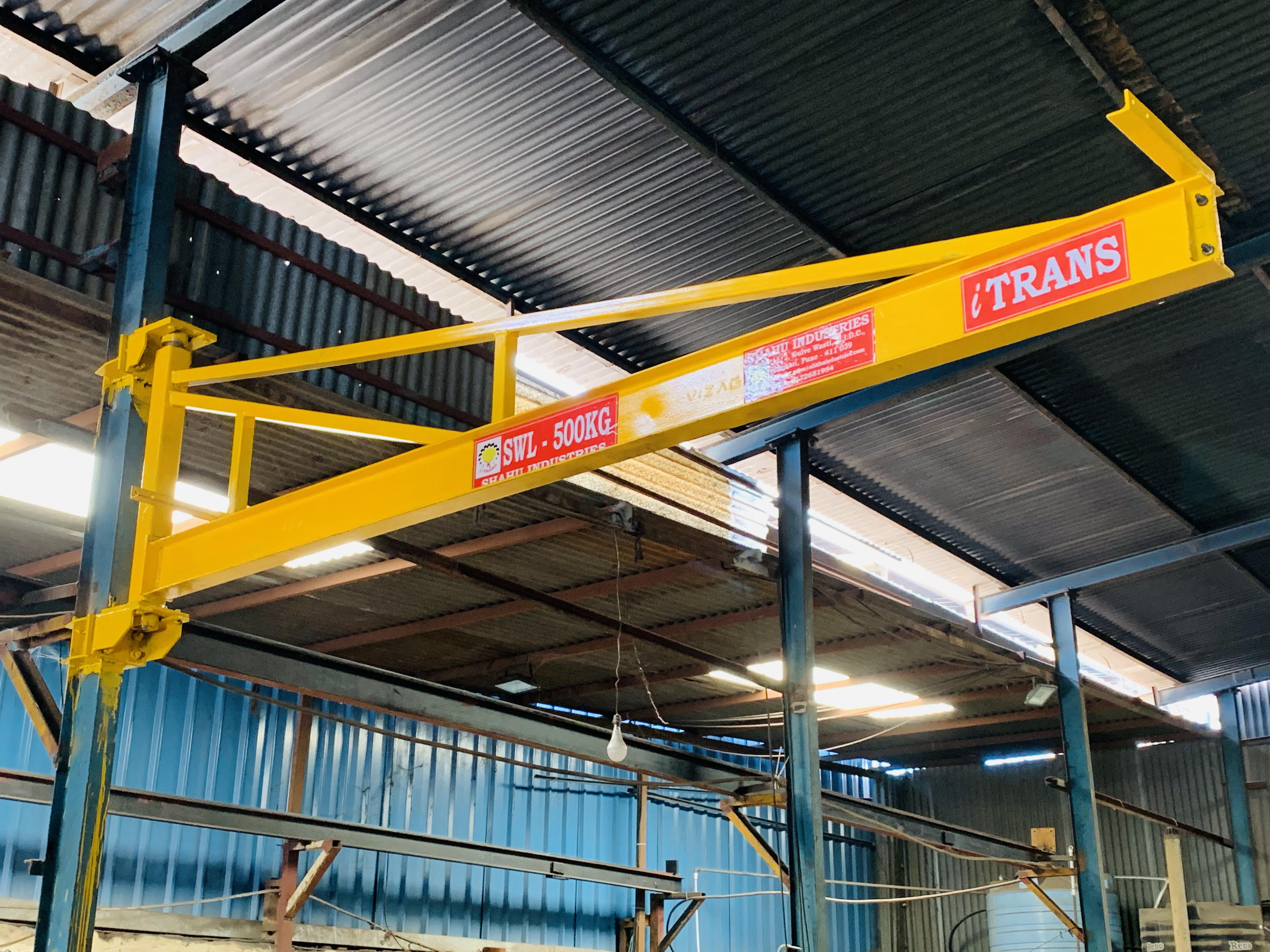

• JIB design: Over braced / Under braced
• Installation location: Indoor / Outdoor
• Slewing: Manual / Motorised

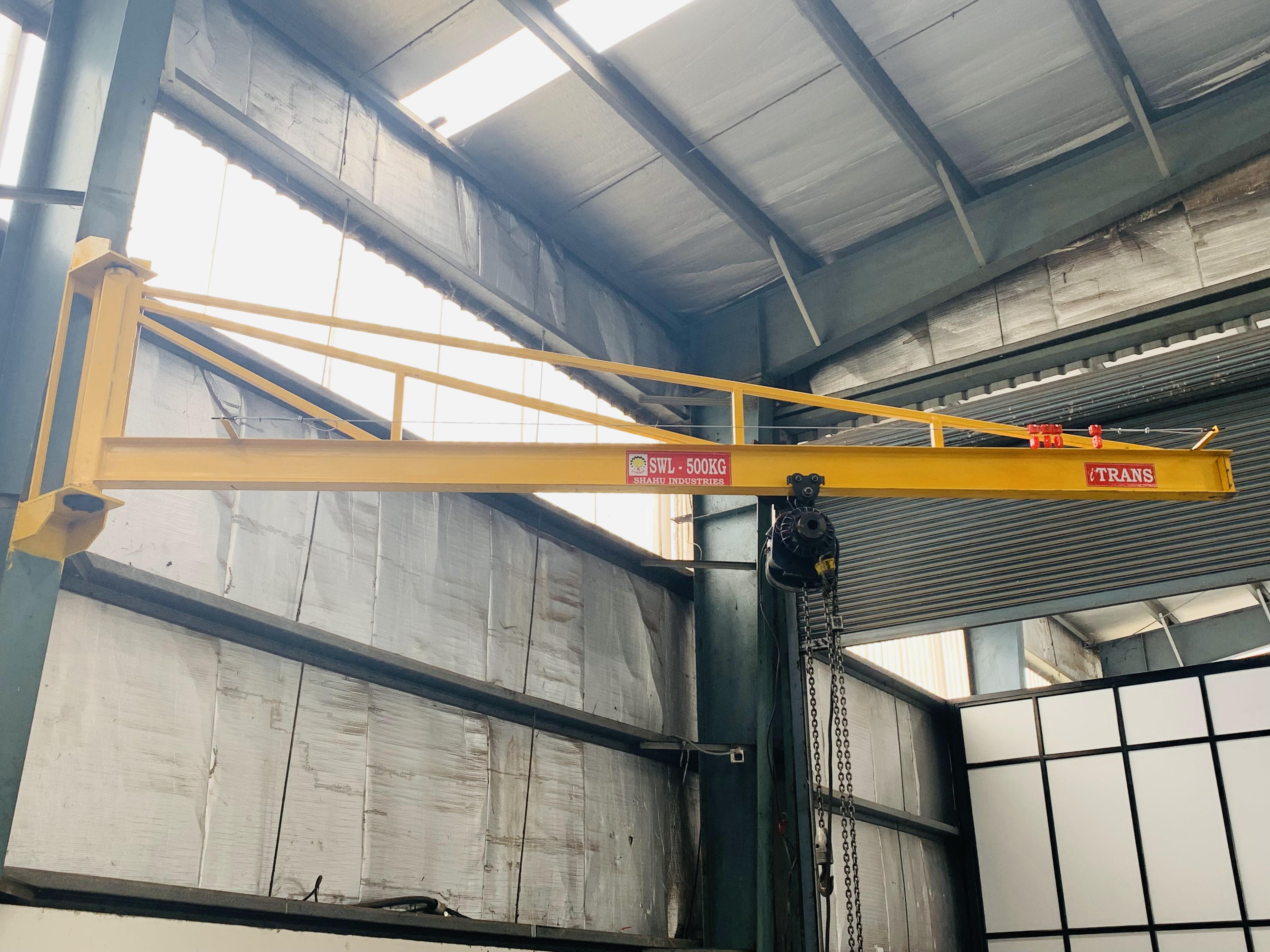

• Used with electric or manual chain hoist, various balancers, lifting devices

Description

These are the most inexpensive JIB Cranes if you have a wall or a post that is strong enough, close to the workstation it will service. The height available under the iron beam is only limited by the height of the building itself.

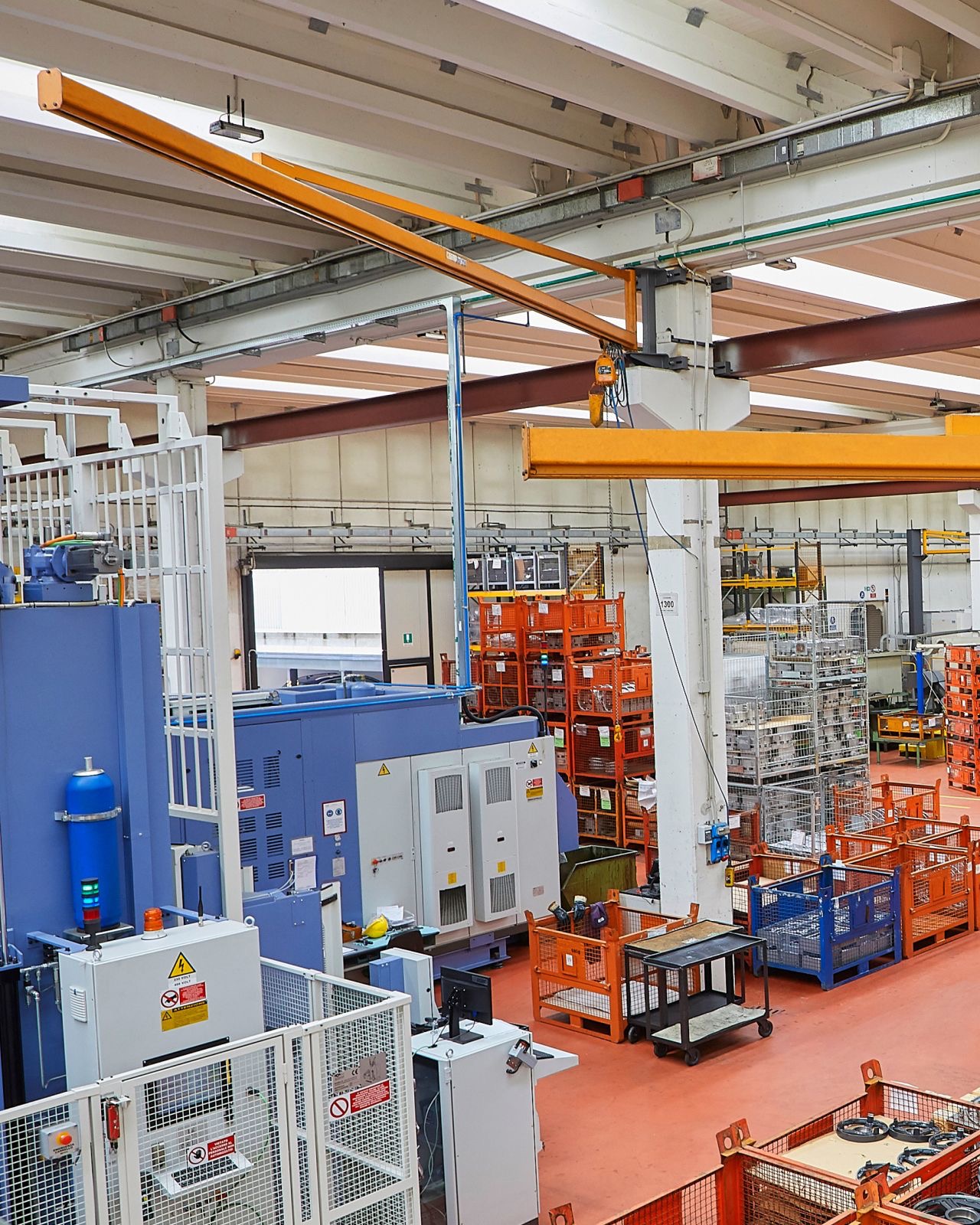

The main feature is the arm: to ensure easy rotation, the arm is articulated in the two captive hinges in the two projecting support members that make up the anchor plate. Wall mounted JIB Crane is a perfect solution for a work station near a wall or other vertical element. Wall mounted JIB Crane can be mounted under a bridge crane on any requested height.

You can use it for quick, easy and safe handling of loads up to 2000 kg. Like in logistics or automotive industry. Its over braced / under braced design and lightweight KBK rail / I-Beam jib arm enable especially easy slewing of the crane. Thanks to the good running qualities of the internal hoist trolley, the hoist moves quite easily.

You can use it for simple operational tasks requiring a capacity of up to 2000 kg. This type of crane meets your requirements for indoor and outdoor Slewing motion limited up to 180 degrees.

Moreover, we offer a electric chain hoists with electric trolley as well as various other accessories.

Accessories

• Installation template + anchor rods
• Electric or manual hoist
• Hoist power supply cable
• Outdoor use
• Adjustable rotation stopper
• Lockable main switch
• Fasteners
