Technical Information

• Standard max. profile length is 6 m
• Capacity: 80 to 2,000 kg
• Surface: Profiles have high quality and impact-resistant powder coating.
• The maximum load per trolley is 500 kg
• Profile sections are cold rolled special track sections in steel with a smooth surface finish
• Long travel / Runway length- infinite & cross travel length- Up to 6 Mtr.(For more than 6 Mtr contact us)
• Hoist: Chain hoist/ manual hoist/ any hoisting equipment.
• Crane drive: Manual / electrical
• Surface: Profiles have high quality and impact-resistant powder coating from inside as well as outside.
• Color: Surface and color options can be adjusted according to customer’s needs and the RAL code provided.(Preferred – RED, Yellow, Gray )

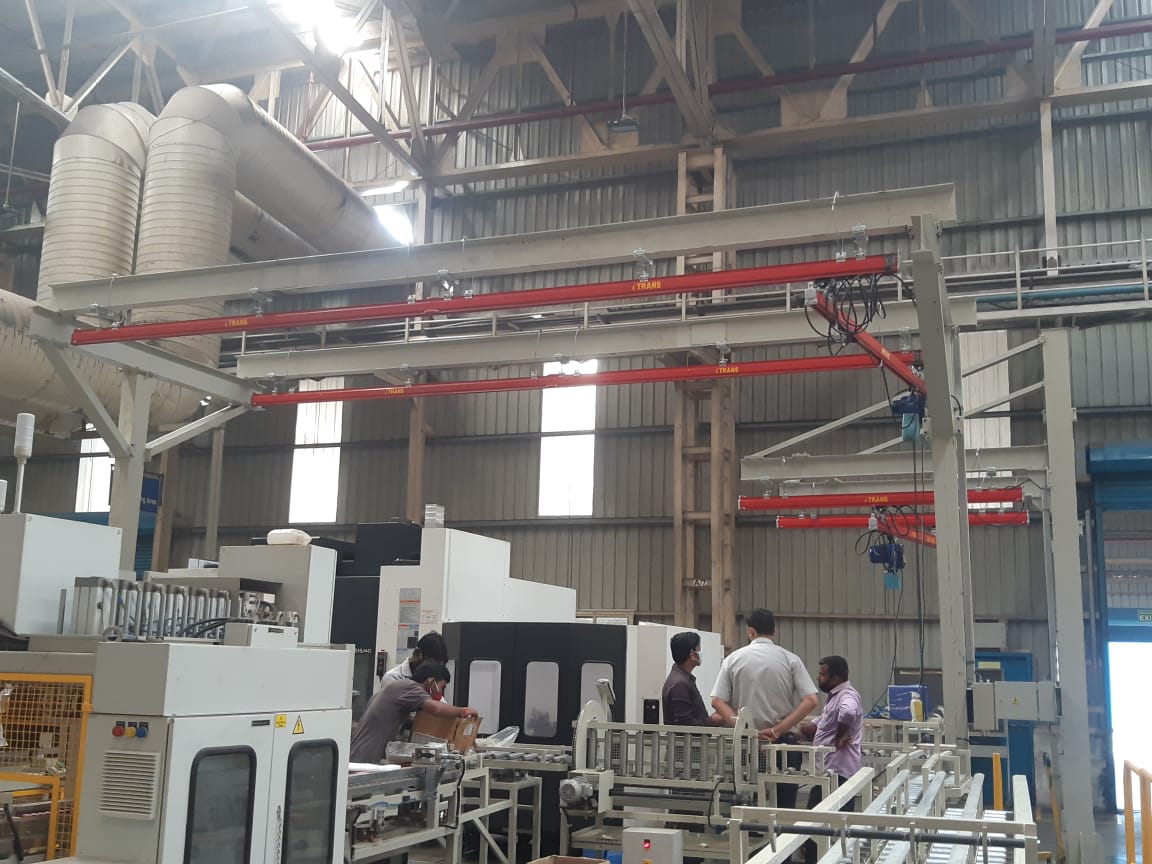

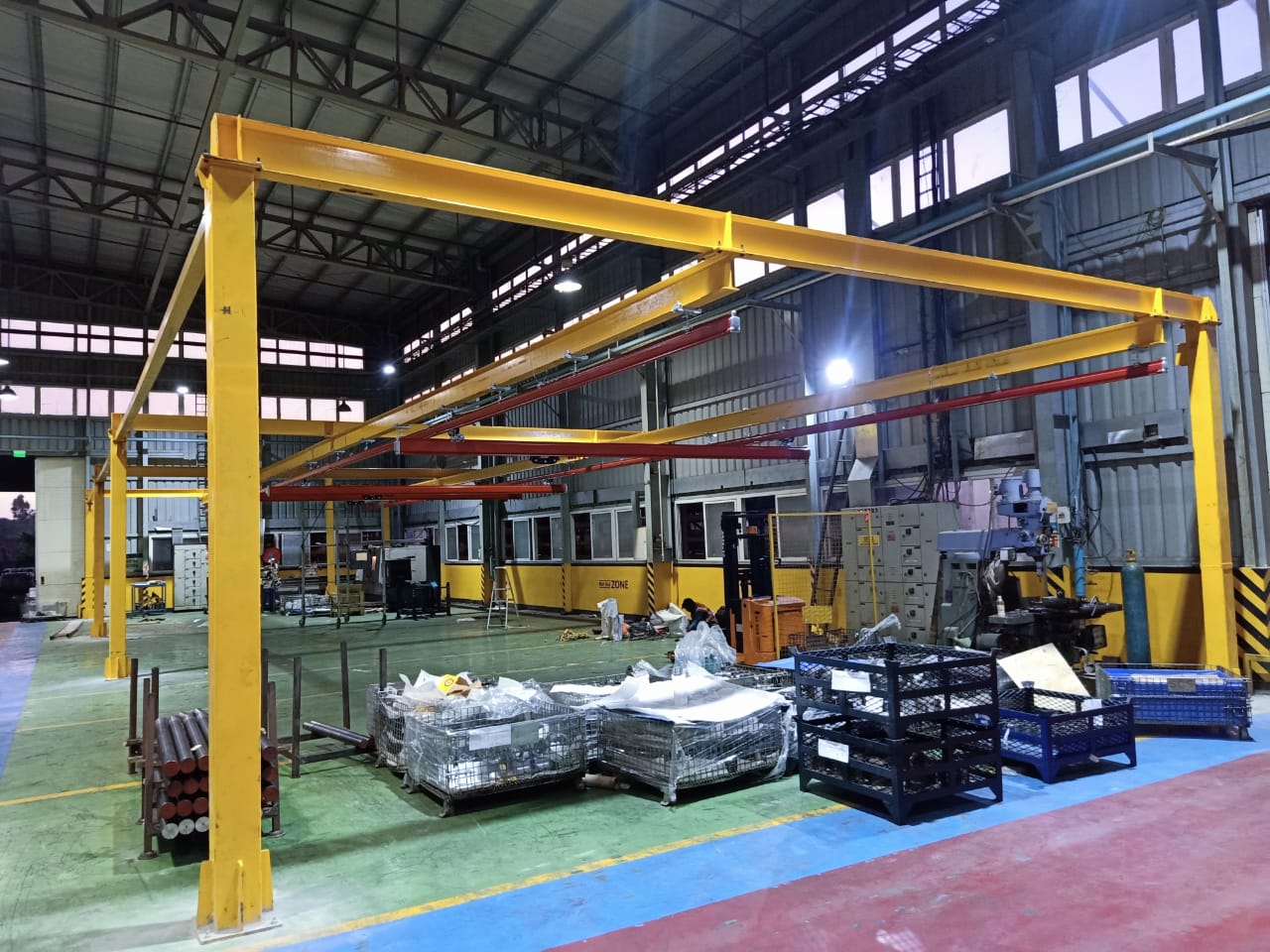

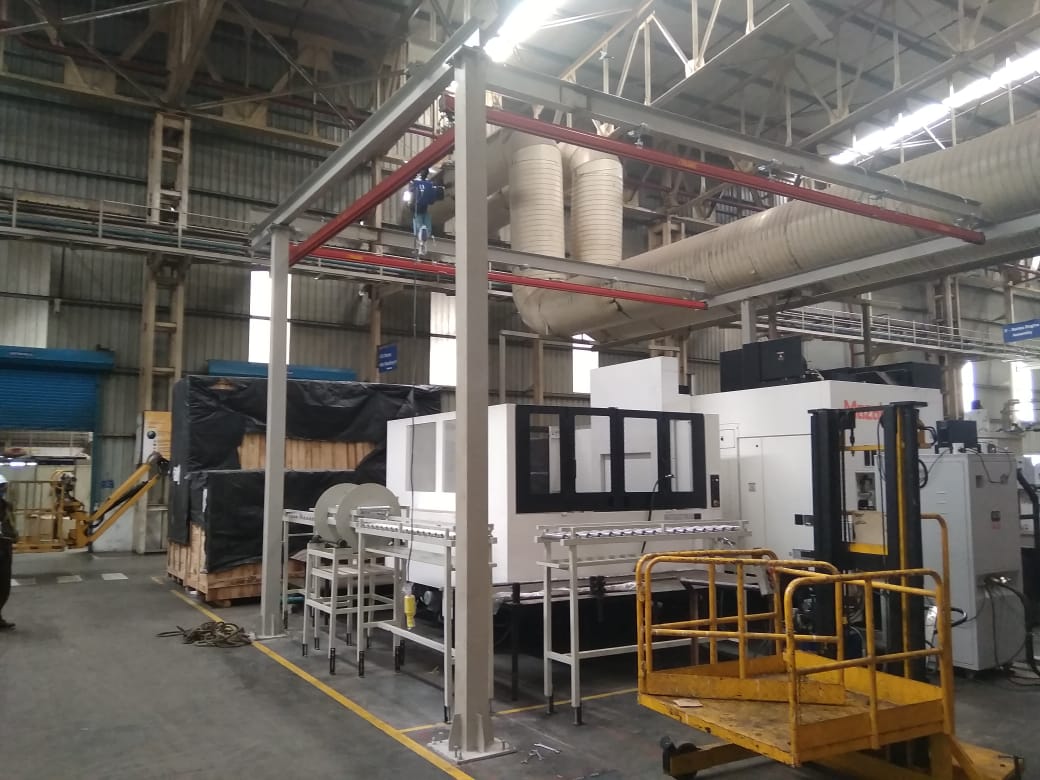

Description

• Smooth Operation With Low Noise
KBK’s trolleys, consisting of durable bearings, travel with low noise and little friction, and do not generate iron scrap or leak oil. Universal joints of the clamps make crane operation smooth and agile
• Time-saving 3 Axis Movement
KBK's 3 axis movement makes it a time-saving tool for a variety of factories, such as motor factories, clean room factories, logistic factories, and factories requiring efficient movements of materials or components.
• Simple Installation
KBK light rail system is designed to be connected with bolts and latches. With basic tools like hex wrenches, open-ended wrenches, and a level, one can easily complete the installation.
• High Adaptability
KBK light rail system can adapt to a wide variety of locations, such as general factories, residence, and temporary constructions. It can be directly installed onto ceilings, RC beams, H-shaped beams, and flat or pitched roofs
• Great Flexibility
KBK light rail system can easily meet the needs of workplaces by extending or shortening vertical and horizontal beams.
• Excellent Adjustability
The excellent adjustability of KBK light rail system makes it perfect for workplaces with height limitation or unparalleled vertical beams (see illustration below). Compared with traditional overhead cranes, KBK light rail system is much more ideal for small and medium sized factories.
• Easy Disassembly and Reassembly
KBK light rail system can be easily disassembled and reassembled, saving extra investment costs in case of relocations of factories or production lines

Accessories

End plates:

They are located at ends and are designed to:

• To prevent any twisting of the hollow profile.
• To keep manual or motorized trolleys securely on the roller paths at the ends of tracks.
• To keep the inside of profiles clean and dust-free.

Trolleys:

Any rail system can be equipped with trolleys in order to ensure travel and transfer movement of hoist and suspension bridge rail. The contact surface with the profile has been reduced to obtain a max. rolling coefficient: thus ensuring noiseless and effortless movement. The rollers of trolleys are synthetic for reasons of minimum routine maintenance & excellent wear resistance.

Suspension Assembly For Suspending Runways:

They allow fitting the light crane system to the support structure. Suspension assemblies are mounted on I-beams for suspending runways. The I-beam holder is provided with an adjustment clamp which can fit on all standard I-beams.

The complete assembly consists of ball and socket joint with molded plastic cups for noiseless operation, absorption of jerks and minimum maintenance. Uniqueness of the assembly allows pendulum movement which prevents bending stresses and minimizes horizontal forces. The height of the runway can be easily and accurately adjusted by means of threaded suspension rods.

Runways:

“iTRANS” make runways are suspended on I-beams with the help of suspension assemblies. Runways are available in various lengths. The runway joining set enables the runways to be extended to any required lengths

Threaded Rod:

Threaded rod is inserted on suspension assembly to facilitate height adjustment.

Safety Ropes:

These are used for secondary prevention technique for safety purpose.
